- MG SOLAR
- XIAMEN, CHINA
- Within 7 days
- 10,000 PCS/DAY
- 1PC
- US $ 12.8~19.3/ PCS
Suitable for all terrain including sloping hills and soil types
Significant cost savings through time taken to construct
No digging, no excavation, no waste, no concrete or wet trades
Helical Piers Ground Screw Pile
Product Description
MG Solar ground screw pile foundation is a robust and sustainable alternative to traditional concrete foundations, removing the need for excavation and concreting. Other applications for the ground screw foundation include signage, timber construction, fencing.
Technical Information
| Ground Screw Type | Adjustable ground screw, flange ground screw, non-flange ground screw, etc. |
| Material | Hot dipped galvanized Q235, carbon steel |
| Ground Screw Length | 600mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm, 2000mm, 2500mm, 3500mm, or as required |
| Wall Thickness | 2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.5mm, 4.0mm, or as required |
| Ground Screw Diameter | 48mm, 60mm, 76mm, 89mm, 114mm, or as required |
| Flange Type | D180x8mm, D200x8mm, D220x8mm, or as required |
| Service Life | More than 25 years life service |
| Foundation | sandy, loosening soil, tight soil, etc |
| Package | Steel Pallet, or as required |
| OEM SERVICE IS AVAILABLE | |

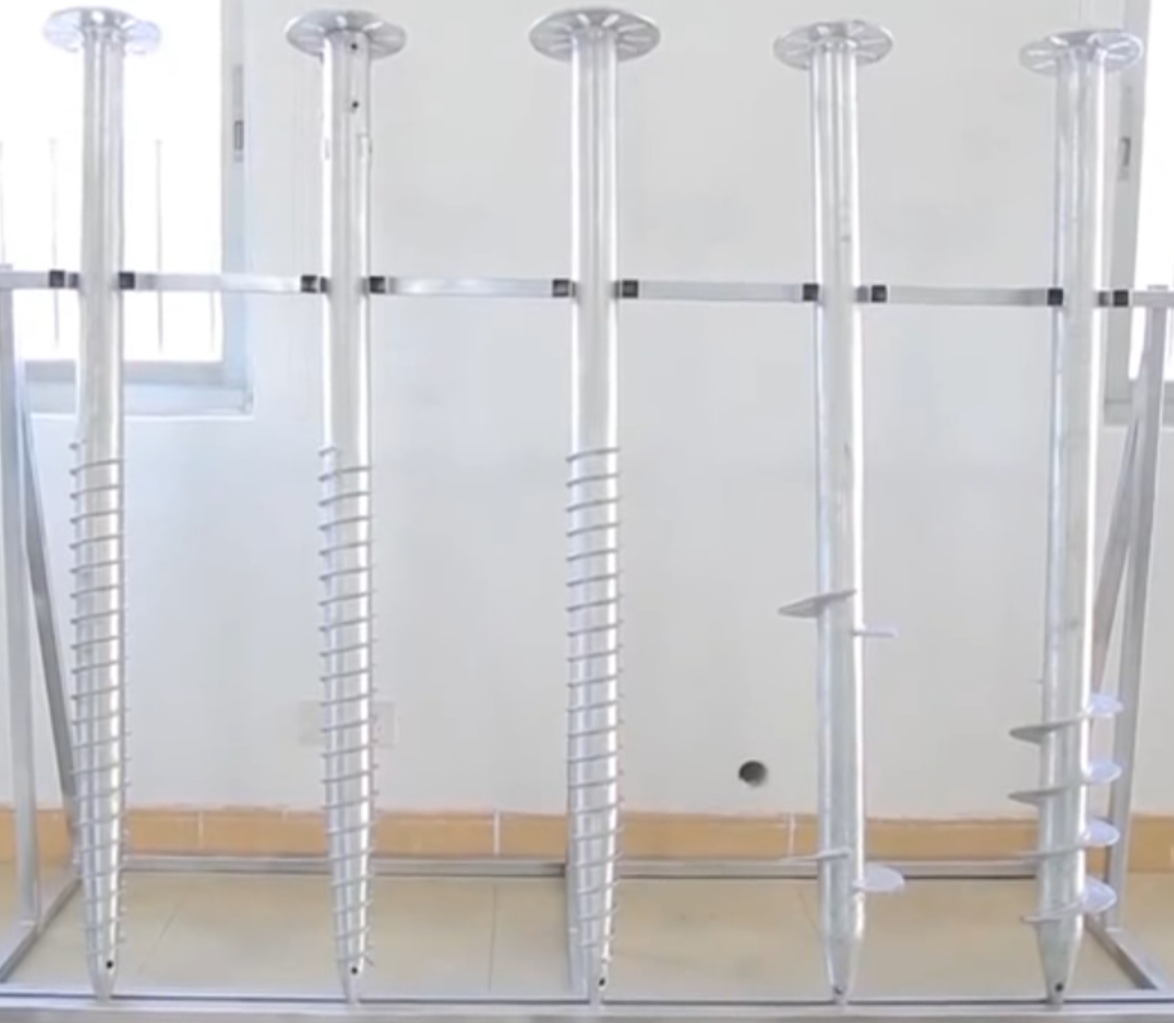

Popupar Type Screw Pile Series
A. Common Use Screw Pile-----MG-SP-F76-T3-L
B. Adjustable Screw Pile------MG-ASP-F76-T3.0-L1600
C. Four Blades Screw Pile: MG-FSP-F76-T3.0-L1600
D. Two Blades Screw Pile: MG-TSP-F76-T3.0-L1600
E. Ribbon Screw Pile:MG-RSP-F76-T3.0-L1600
Packaging & Delivery
Packaging Details: Iron Pallet for Helical Piers Screw Pile
Port: Xiamen Port, China
Delivery Time: 5-10 working days after received your payment
Project Reference
FAQ
Q: What’s the material of the ground screw pile?
MG SOLAR:Hot-Dipped Galvanized Steel Q235(HDG Q235B)
Q: What’s the thickness of the galvanized coating?
MG SOLAR:80μm~120μm. Determined by the material thickness
Q: What’s the diameter of the screw pile?
MG SOLAR:76mm, 89mm, 114mm are available for options. 76mm is the common use.
Q: What’s the thickness of screw pile material？
MG SOLAR:2.5mm~4mm, 3mm is the common use.
Q: What is the total length range of adjustable screw piles？
MG SOLAR:1600mm~1900mm
Q: How to choose the screw pile?
MG SOLAR:Based on soil condition and project load to choose correct thickness and diameter of screw pile.
Q: What is the length of screw pile you can offer?
MG SOLAR:Common use is 1600mm,1800mm,2000mm,we can offer between 1000mm to 3000mm.
Q: What kind of systems can screw pile be used for?
MG SOLAR:It can be used for ground mount systems, solar farm structure systems and carport structure systems.
Please feel free to contact us, if there is anything we can do for you !
