ZAM Walkway
  • MG Solar
  • China
  • 7 weekdays
  • 2MW/Week
  • 50 Kilowatt
  • US $ 20~20.8/KW

Walkway is fairly useful for a photovoltaic system, which not only makes mounting and maintenance easier, but also protect roofs during walking. Our walkway can be compatible with all our products: Rail,L-feet, clamp etc. To be more versatile, we offer multiple choice of length, width and coating thickness.

ZAM Walkway

ZAM Walkway


Product Description

Walkway is fairly useful for a photovoltaic system, which not only makes mounting and maintenance easier, but also protect roofs during walking. Our walkway can be compatible with all our products: Rail,L-feet, clamp etc. To be more versatile, we offer multiple choice of length, width and coating thickness.


Technical Information

Product NameZAM Walkway
SizeCustomized
AdvantageSimple and fast installation
MaterialZAM galvanized steel
Warranty12 years


Features & Benefits

- Corrosion Resistance: Produced from ZAM galvanized steel, it is is twice as rust resistant as standard galvanized steel giving you the confidence you need for all your PV Solar installations.

- Lightweight

High strength and high loading capacity

Aging‐Resistant

- Easy installation


Detail Show

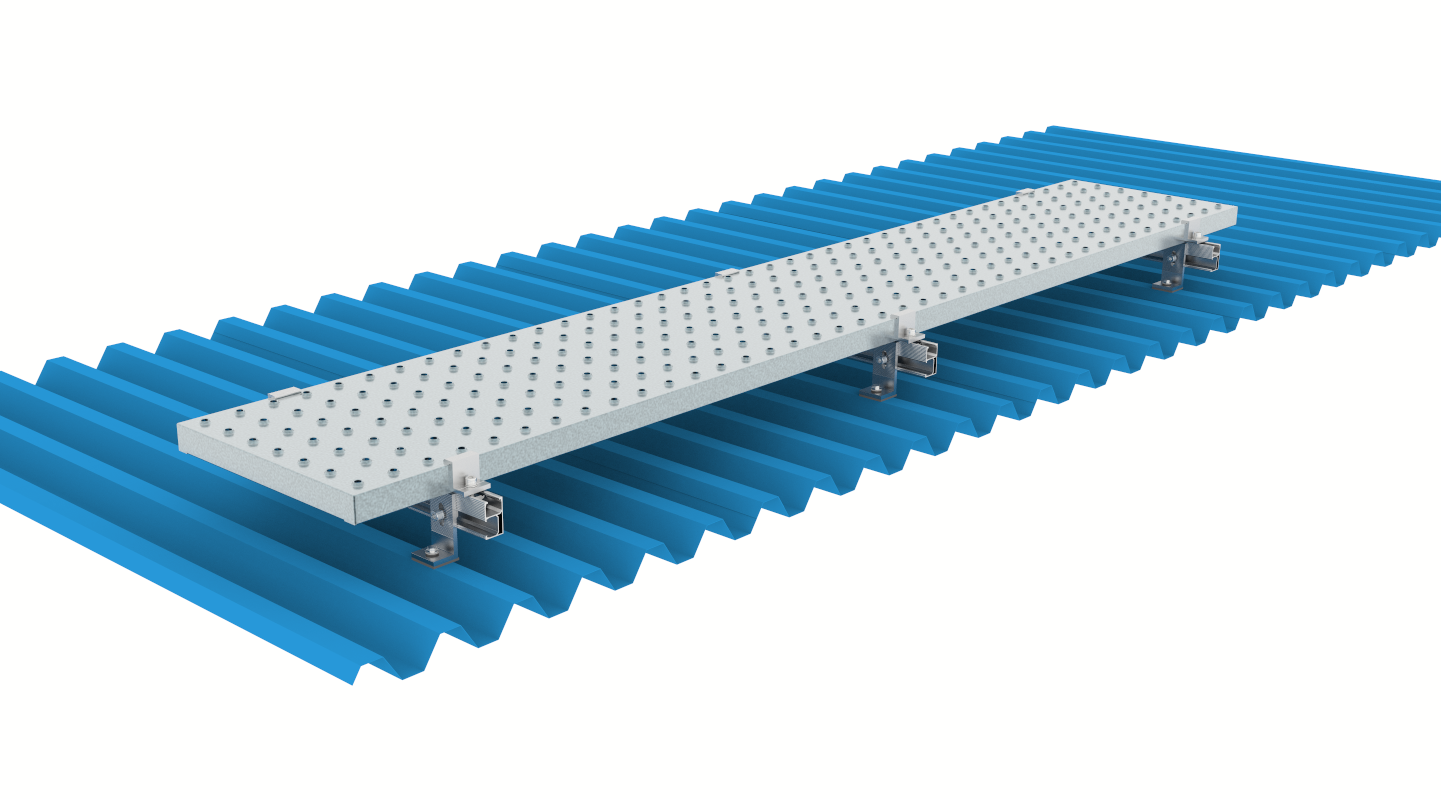

Solar Mount Walkway


Solar System Roof Walkway


ZAM Walkway


FAQ

Q: What materials are the PV walkway made of?

MG SOLAR:We provide two materials of PV walkway with customers: ZAM galvanized steel and Fiberglass Reinforced Plastic (FRP).



Q: What are the recommended sizes of FRP Walkway?

MG SOLAR:

L3360mm*W370mm*H25mm / L3660mm*W370mm*H30mm;

L3360mm*W410mm*H25mm / L3660mm*W410mm*H30mm;



Q: What are the recommended sizes of ZAM Walkway?

MG SOLAR:L2000mm*W350*H35/  L2500mm*W350*H35 / L3000mm*W350*H35



Q: What is the PV Walkway used for?

MG SOLAR:PV Walkway are widely used on rooftop for solar panel system maintenance. It is a good solution for solar system to avoid any risk during solar system maintain in future.



Q: What is the Fixing Method of PV Walkway?

MG SOLAR:It is fixed on the rail with end clamp and hexagonal Bolts. Generally it is installed on metal roofs, so it can be used with our L feet series, roof clamp series, etc.



Q: What should I do if the length of the aisle does not meet my needs?

MG SOLAR:Don’t worry, both walkways can be cut to length according to your needs.



Q: What colors are available?

MG SOLAR:FRP walkways are available in yellow, green and gray for your choice.
